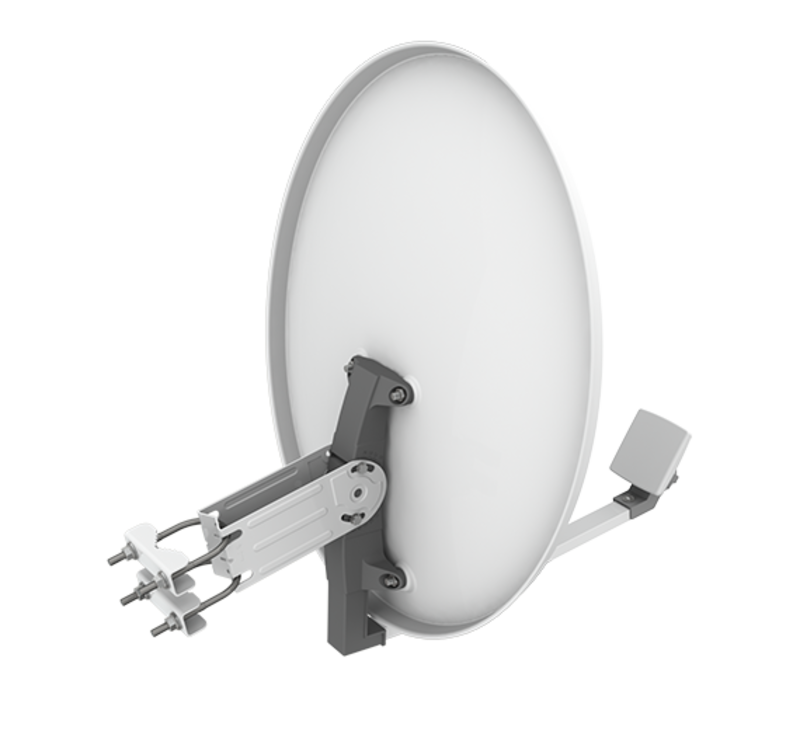

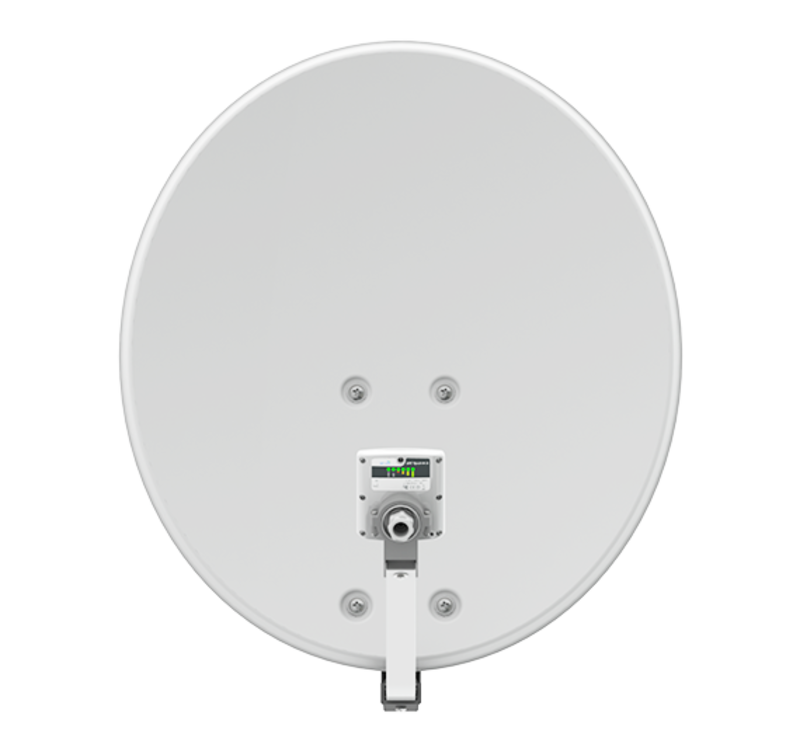

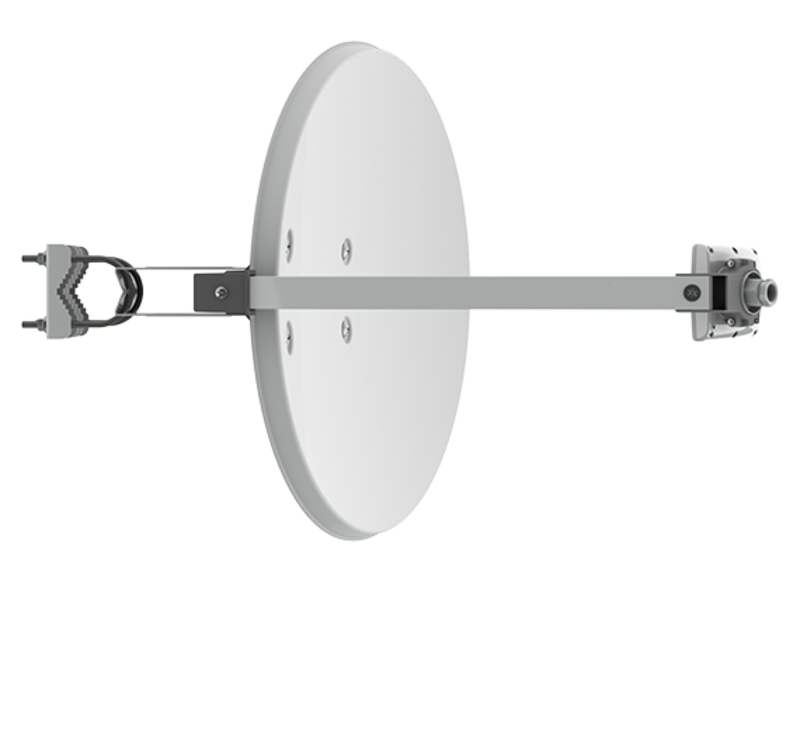

Long-range and high-gain wireless device suitable to use with any standard offset satellite dish antenna

APC ECHO 5
APC ECHO 5
APC ECHO 5

APC ECHO 5

Highlights:
160 Mbps capacity
50,000 PPS
4.780 – 6.100 GHz support
High output power 29 dBm radio
Integrated 15 dBi directional panel antenna
External 27 dBi satellite dish antenna
Powerful OS
iPoll 2  - enhanced communication protocol
Weather proof metal enclosure (IP-65 rated) design
Free NMS (Infinity Controller)
Grounding option on the enclosure

APC ECHO 5

Name Size Type
Documentation
APC ECHO 5 datasheet
1.1MB APC Download
Documentation
APC series product overview
3.44MB APC Download
Documentation
APC series user guide
2.22MB APC Download
Documentation
Campground surveillance case study
609KB APC Download

PTP mode
48 km (29.83 mi)
PTMP mode
11 km (6.84 mi)
ipoll2

iPoll 2 – enhanced performance protocol

iPoll 2 uses a centralized control manner, where base station polls every subscriber station (CPE) and ensures smooth packet transmission for voice, video and data.The polling method is smart: stations having data are polled more often versus idle ones.

QoS Support

The APC OS combines wireless technology with quality of service for multiple flows like voice, video and data. QoS on iPoll 2 uses the strict policy method and ensures the lowest latency as well as minimal jitter for the most sensitive real time applications.

APC OS

The APC OS is feature-rich, easy to use and professionally developed operating system made for Deliberant wireless equipment.  The iPoll proprietary, wireless transmission protocol optimizes the hardware to allow high throughput even with a large number of client connections.  Additionally it produces low latency and high PPS (Packet Per Second rate) transmissions while exhibiting industry- leading immunity to noise . The easy to use interface also has a variety of tools like spectrum analyzer, site survey, antenna alignment, delayed reboot, ping, trace-route and ping watchdog to make the installation straightforward and fast.
ligo os

LinkCalc

LinkCalc

LinkCalc is LigoWave’s free wireless outdoor link planner and bandwidth calculator. It allows users to design wireless PTP/PTMP networks using virtual maps without the need for on-site field surveying or specialized tools. The data provided with LinkCalc can also be used to quote potential customer projects.
