Powerful and cost effective client device with an integrated high gain antenna for mid-range links

APC 2M-14

Highlights:
160 Mbps capacity
30,000 PPS
2.352 - 2.557 GHz support
High output power 30 dBm radio
Integrated 14 dBi directional panel antenna
Powerful OS
iPoll 2  - enhanced communication protocol
Weather proof (IP-66 rated) design
Free NMS (WNMS – Wireless Network Management System)

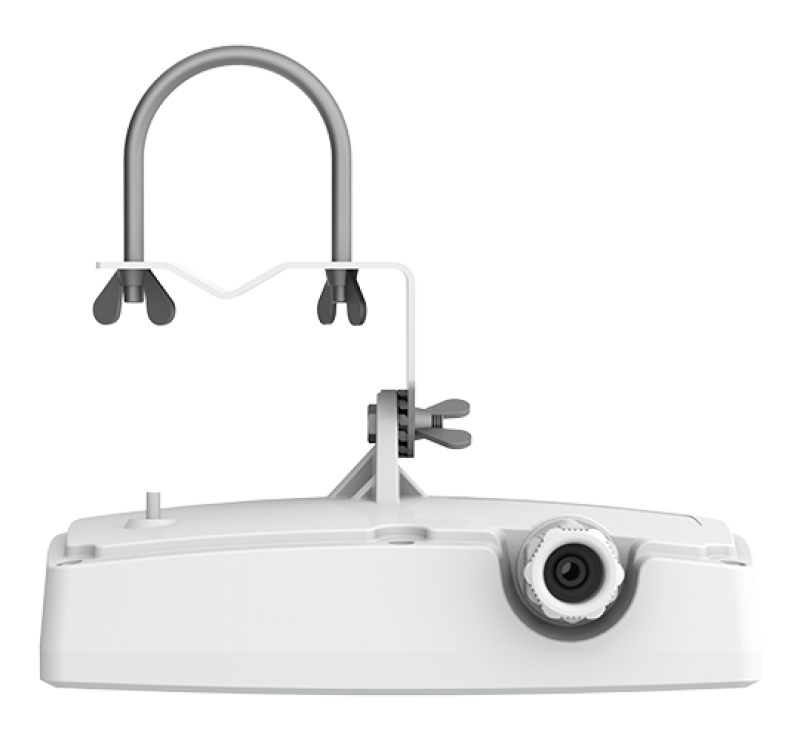

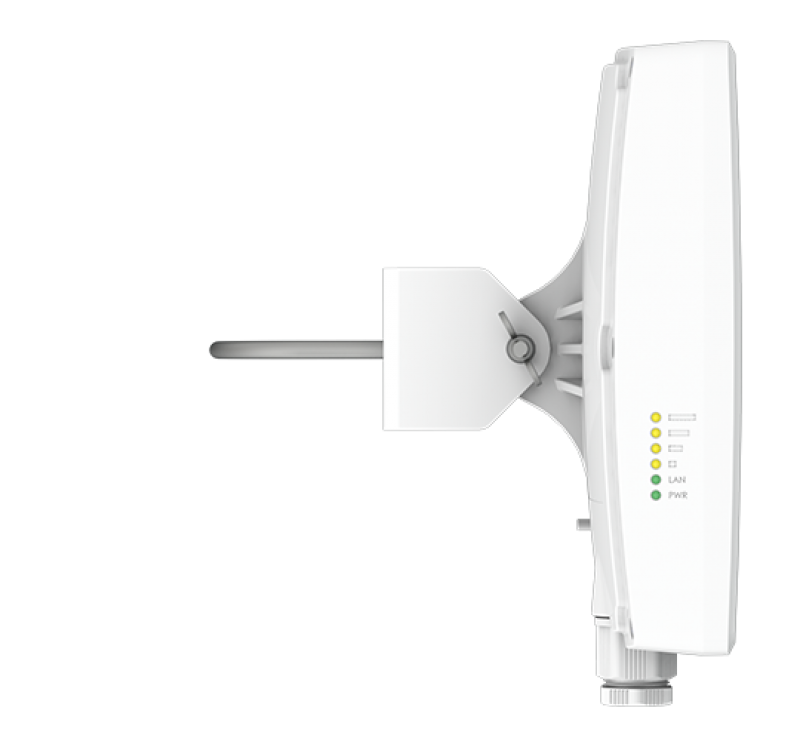

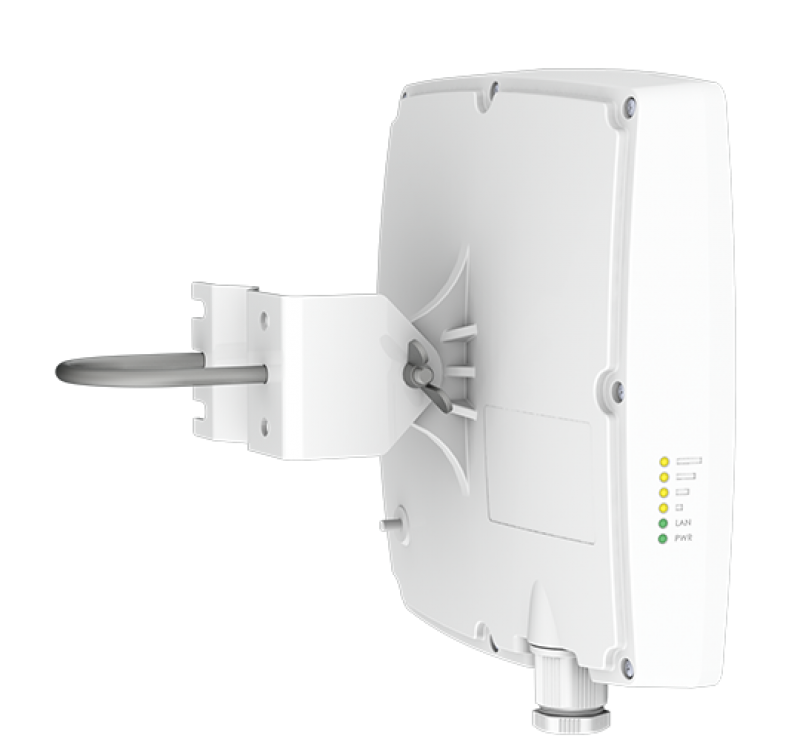

Wall and pole mounting option
Grounding option on the enclosure

APC 2M-14

Name Size Type
Documentation
APC 2M - 14 datasheet
580KB APC Download
Documentation
APC series product overview
3.44MB APC Download
Documentation
APC series user guide
2.22MB APC Download
Documentation
APC 2M-14 QIG
579KB APC Download

Distance recommendations

PTP mode
8 km (4.97 mi)
PTMP mode
3 km (1.86 mi)
ipoll2

iPoll 2 – enhanced performance protocol

iPoll 2 uses a centralized control manner, where base station polls every subscriber station (CPE) and ensures smooth packet transmission for voice, video and data.The polling method is smart: stations having data are polled more often versus idle ones.

QoS Support

The APC OS combines wireless technology with quality of service for multiple flows like voice, video and data. QoS on iPoll 2 uses the strict policy method and ensures the lowest latency as well as minimal jitter for the most sensitive real time applications.

APC OS

The APC OS is feature-rich, easy to use and professionally developed operating system made for Deliberant wireless equipment.  The iPoll proprietary, wireless transmission protocol optimizes the hardware to allow high throughput even with a large number of client connections.  Additionally it produces low latency and high PPS (Packet Per Second rate) transmissions while exhibiting industry- leading immunity to noise . The easy to use interface also has a variety of tools like spectrum analyzer, site survey, antenna alignment, delayed reboot, ping, trace-route and ping watchdog to make the installation straightforward and fast.
ligo os

WNMS

WNMS is a FREE enterprise grade Wireless Network Management System.  A single software solution simplifies a large number of management and monitoring tasks for the network administrator.

Learn more

LinkCalc

LigoWave‘s link calculator is a link planning tool available online at
http://www.ligowave.com/linkcalc


Learn more
