Powerful new generation CPU ensures better performance delivering higher up to 170 Mbps capacity and almost 2 X higher packet per second rate (80000). Narrow (5 and 10 MHz) channel support ensures steady performance in noisy environments. More RAM improves the performance with multiple users connected to a single base-station and larger flash stores a 2nd failover firmware image.
- All products
- Access
- Backhaul
- Surveillance
- Industrial applications
- Operators
- Rural connectivity
- Enterprise Wi - Fi
- Hotspot

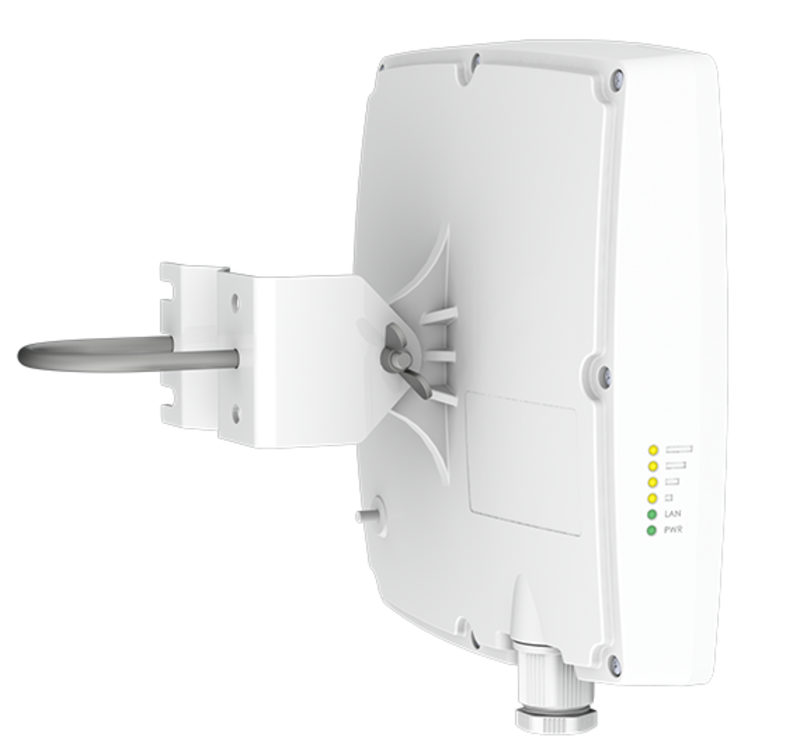

LigoDLB 2-14
Highlights:
2.402 - 2.492 GHz support
80,000 PPS
170 Mbps capacity
High output power 31 dBm radio
Integrated directional 14 dBi dual - polarized panel antenna
Powerful OS
Smart polling data transmission protocol (iPoll 3)
Weather proof (IP-66 rated) design
Free NMS (Infinity Controller)
Responsive HTML 5 based GUI
Wall and pole mounting option
LigoDLB 2-14
| Name | Size | Type | |
|---|---|---|---|
|
Documentation
LigoDLB series QIG |
1.37MB | DLB | Download |
|
Documentation
LigoDLB 2-14 datasheet |
584KB | DLB | Download |
|
Documentation
iPoll - PTMP. Technical Paper |
112KB | DLB | Download |
|
Documentation
LigoWave product overview |
12.26MB | DLB | Download |
|
Documentation
LigoDLB User Guide |
2.39MB | DLB | Download |
|
Documentation
iPoll 3 case study |
2.31MB | DLB | Download |
Distance recommendations
PTP mode
PTMP mode
New Hardware platform
Integrated surge protection
3 kV line to ground and 1 kV line-to-line protection allows operating in a harsh weather conditions and unstable electrical installations.
LigoWave OS
LigoWave OS contains all of the essential features for establishing fast, strong, and reliable PTMP networks. The LigoWave OS includes IPv6 Bridge & Router Support, SSDP & Bonjour Device Discovery Options, Flexible Traffic Shaping, DHCP Option 82, and more. The user interface is built on HTML5 with responsive design.
iPoll 3: Enhanced Performance Protocol
LigoWave’s iPoll™ PTMP (Point-to-Multi-Point) proprietary protocol is an innovative solution, eliminating transmission congestion and close-cluster interference created in wireless PTMP installations.
Hotspot scenario support
Starting from v7.52 Infinity firmware image can be used on a LigoDLB series devices for the outdoor hotspot and other related applications. After the firmware upgrade DLB devices are converted into access points for outdoor hotspot networks and will lose the functionality of point-to-point or point-to-multipoint connectivity.
LinkCalc
LinkCalc is LigoWave’s free wireless outdoor link planner and bandwidth calculator. It allows users to design wireless PTP/PTMP networks using virtual maps without the need for on-site field surveying or specialized tools. The data provided with LinkCalc can also be used to quote potential customer projects.
