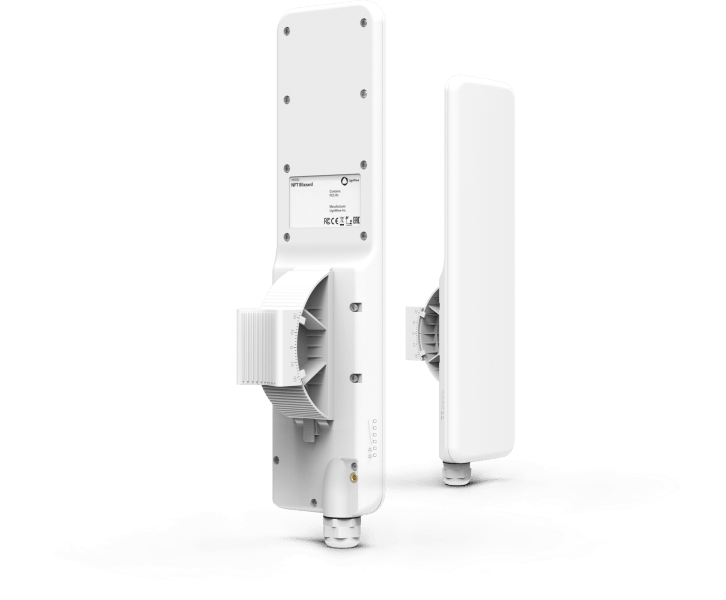

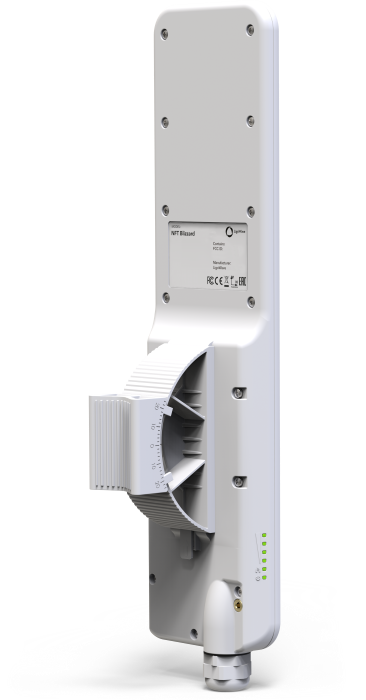

NFT Blizzard 360ax

2.4/5GHz Dual-Radio 802.11ax Outdoor Omni Access Point

The NFT Blizzard 360ax is an outdoor Wi-Fi access point built on high-performance 802.11ax/.be Quad-core platform with dual integrated 2.4GHz and 5GHz 2×2 MIMO radios, boasting up to +25dBm of transmit power.

High performance Omni-directional
Outdoor Access Point

2 Gbps+

Seamless Connectivity

4G/5G over Wireless
360°
Coverage

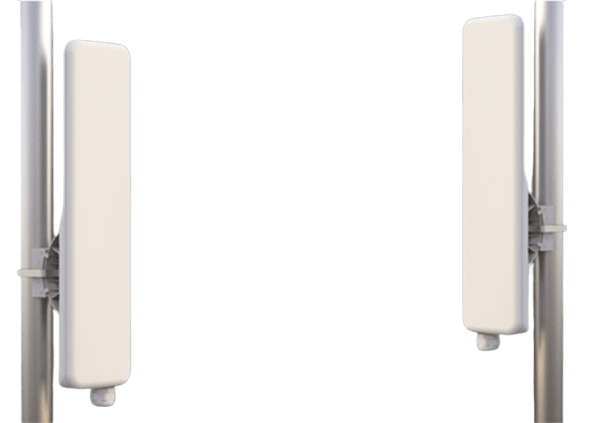

Enjoy seamless connectivity in every direction with full omni-directional coverage. Designed for outdoor environments, the NFT Blizzard 360 delivers stable high-speed wireless access to multiple users across the entire 360° area, eliminating dead zones and ensuring reliable performance everywhere around the device.

Telecom-grade solution for rural connectivity

Blizzard 360 enables operators to offload 4G/5G traffic cost-effectively by creating wireless infrastructure in areas where cellular build-out is not economical. With seamless SIM-based authentication, subscribers' phones connect automatically, enabling services like Voice over Wireless when mobile signal is weak or unavailable.

Next-Gen Wireless Hardware

Blizzard 360 is built on 802.11be-class hardware, delivering superior radio sensitivity and enhancing signal processing compared to typical 802.11ax platforms. Operating on the 802.11ax standard today, it benefits from next-generation hardware design to provide extended range and stable connectivity in demanding outdoor environments.

Hardware Based on

802.11be

Infinity Controller

The Infinity Controller is a wireless network management platform available for the NFT series, LigoDLB series, LigoDLBax series, LigoVision series and LigoPTMP series. It enables users to install, manage, and expand NFT Wi-Fi and DLB networks with automated device onboarding, predefined network scenarios, and other features. For the DLB, DLBax, and PTP series, the Infinity Controller simplifies the deployment, expansion, and maintenance of wireless networks.

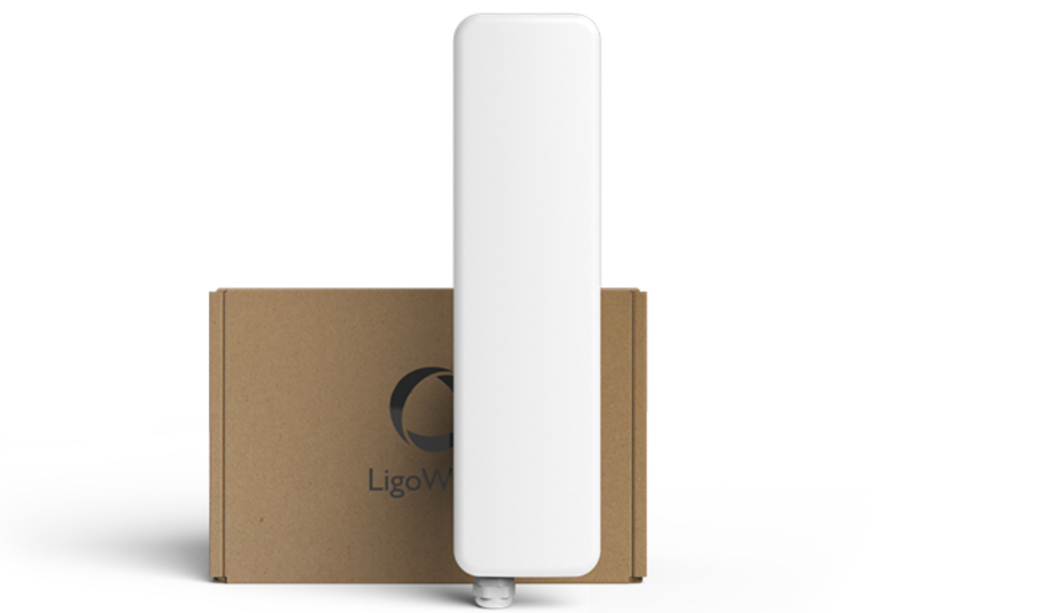

Small Form Factor

A small form factor means smaller packaging, which in turn reduces transportation costs and enables the devices to blend in better with surroundings. Moreover, the NFT Blizzard 360ax enclosure is non-metallic, IP66 weatherproof and UV-proof, making the device lighter and corrosion-resistant.

Specification

Zero loss design
Integrated surge protection

Radio Mode:
Dual 2×2 MIMO, MU-MIMO, OFDMA

Antenna:
Omni-directional 7dBi (5GHz) / 5dBi (2.4GHz)

Interfaces:
10/100/1000 Base-T, RJ45

Power Supply:
802.3at active PoE in (55 VDC)

Power Source:
~100-240 VAC (AC to 55 VDC PoE Adapter Included)

Max Power Consumption:
Up to 15W max, under 13W typical

2nd Ethernet Port Power Supply: 802.3af/at out 55VDC, up to 13W

In the box

NFT Blizzard 360ax
PoE Adapter
