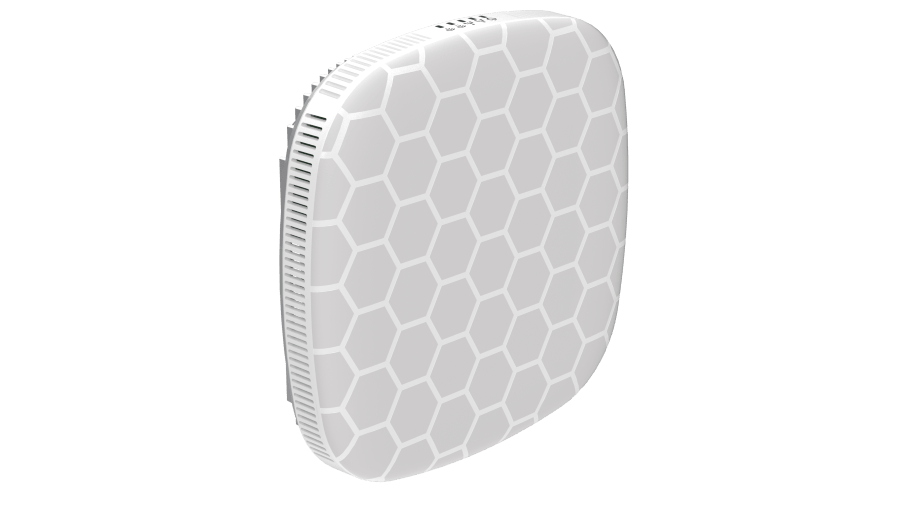

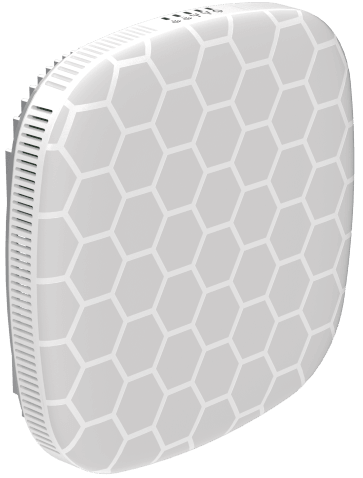

The NFT 2ax is a Wi-Fi access point based on 802.11ax technology with integrated 2.4 and 5GHz (2×2) radios delivering up to +24dBm output power. Equipped with dual-core 1GHz QCA IPQ5000 radio, 256MB RAM and 64MB Flash memory, the NFT 2ax AP brings efficiency to the next level. Two Ethernet ports, 2.5Gbps with 802.3at which allows powering the access point using PoE switches, and an additional Gigabit Ethernet port, provide the users with ability to extend the network or connect additional devices in office or home network. Small footprint, low power consumption and classic LigoWave.
The NFT 2ax features a uniquely engineered 4-element antenna system, purpose-built for both ceiling and wall installations. Unlike standard "omnidirectional" multi-band antennas, this design uses dedicated antenna elements for each band and polarization, ensuring more precise and efficient signal distribution.
The Infinity Controller is a wireless network management platform available for the NFT series, LigoDLB series, LigoDLBax series, LigoVision series and LigoPTMP series. It enables users to install, manage, and expand NFT Wi-Fi and DLB networks with automated device onboarding, predefined network scenarios, and other features. For the DLB, DLBax, and PTP series, the Infinity Controller simplifies the deployment, expansion, and maintenance of wireless networks.
Easy Mesh is LigoWave’s solution for expanding network coverage wirelessly and automating device configuration. This feature is designed for the NFT Series and is available on the External Infinity Controller.
The Infinity Controller allows users to set up an Easy Mesh network in a plain and simple way: just have at least one LAN-connected AP, create a new Easy Mesh network, assign devices to it, and you are good to go!
Radio Mode:
Dual 2×2
Antenna:
4× Internal Omnidirectional Antennas
Gain 2.4GHz: 4dBi, 5GHz: 5dBi
Transmit Power:
2.4GHz: +20dBi
5GHz: +24dBi
Interfaces:
1× 10/100/2500 Base-T with 802.3at PoE
1× 10/100/1000 Base-T
Reset Button
Power Method:
802.3at PoE (55VDC) Support
Power Supply:
100–240VAC to 55VDC PoE (Optional)
Max Power Consumption:
14W
