A 5GHz Wireless Outdoor Device with 802.11n for Mid-to-Long Range PTP and PTMP Scenarios Involving Harsh Environments

LigoDLB MACH 5
LigoDLB MACH 5
LigoDLB MACH 5

LigoDLB MACH 5

Highlights:

5.150 - 5.850 GHz (FCC 5.150 - 5.250 and 5.725 - 5.850 GHz)
80,000 PPS
170 Mbps capacity
High output power 29 dBm radio
Integrated 23 dBi dual-polarized directional panel antenna
Powerful OS
Smart polling data transmission protocol (iPoll 3)
Meets IP – 67 certification
Free WNMS (WNMS – Wireless Network Management System)
Responsive HTML 5 based GUI

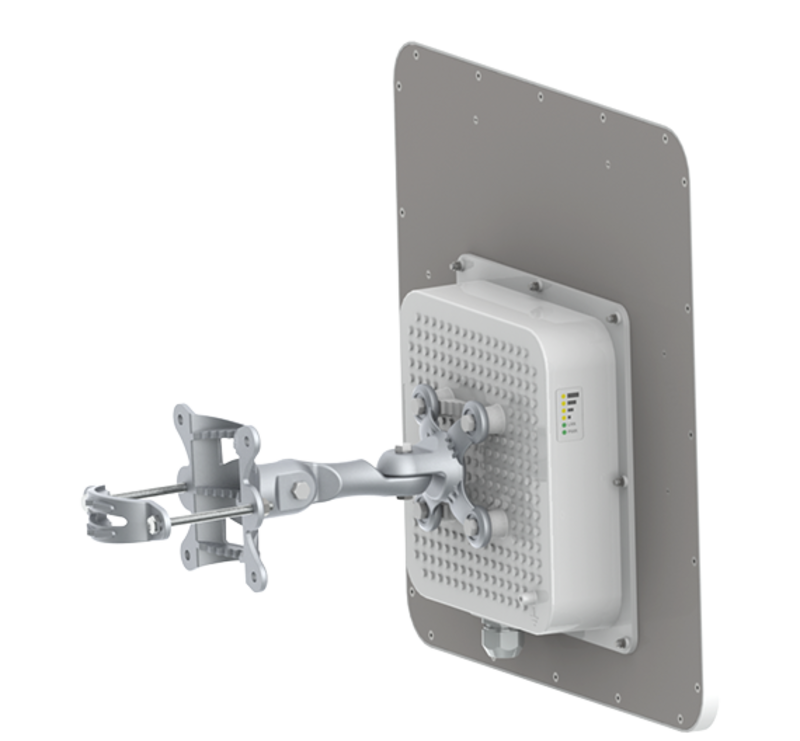

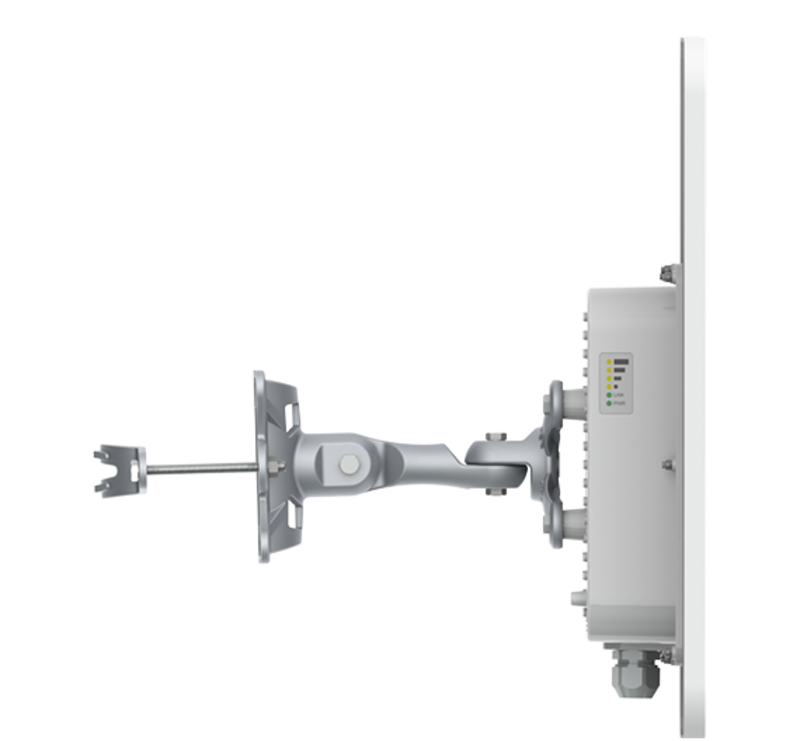

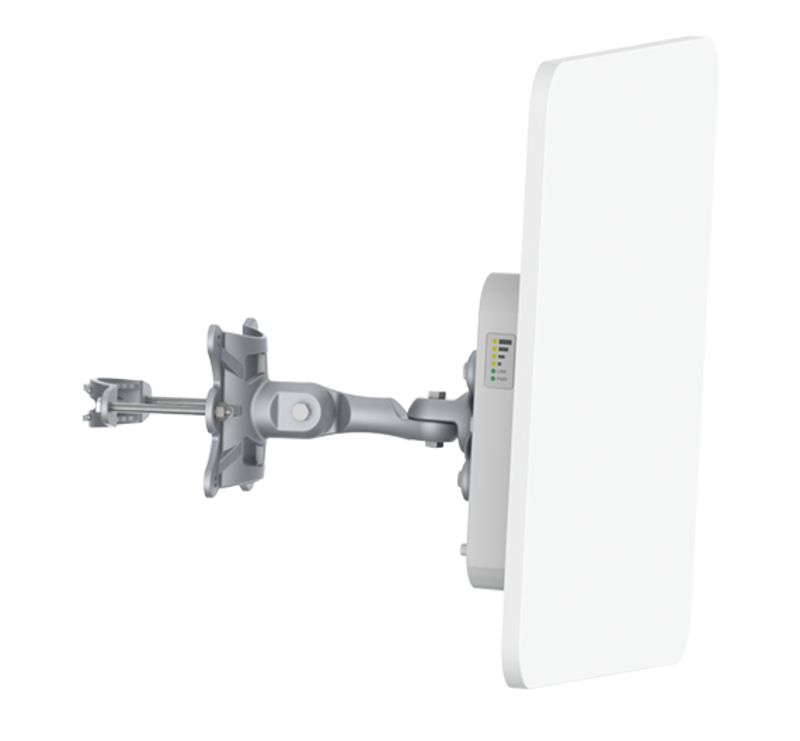

Combination, heavy duty wall / pole mount bracket included

LigoDLB MACH 5

Name Size Type
Documentation
LigoDLB series QIG
1.37MB DLB Download
Documentation
LigoDLB MACH 5 datasheet
851KB DLB Download
Documentation
iPoll - PTMP. Technical Paper
112KB DLB Download
Documentation
LigoWave product overview
12.26MB DLB Download
Documentation
LigoDLB User Guide
2.39MB DLB Download
Documentation
iPoll 3 case study
2.31MB DLB Download
Documentation
EOL LigoDLB MACH 5
334KB DLB Download
Documentation
WiFi4EU fact sheet
89KB DLB Download
Documentation
Solutions for Elevator Surveillance
323KB DLB Download
Documentation
Wireless Video Surveillance in Practice
1.67MB DLB Download

Distance recommendations

PTP mode
30 km (18.64 mi)
PTMP mode
12 km (7.46 mi)

New Hardware platform

Powerful new generation CPU ensures better performance delivering higher up to 170 Mbps capacity and almost 2 X higher packet per second rate (80000). Narrow (5 and 10 MHz) channel support ensures steady performance in noisy environments. More RAM improves the performance with multiple users connected to a single base-station and larger flash stores a 2nd failover firmware image.

solutions
solutions

Integrated surge protection

3 kV line to ground and 1 kV line-to-line protection allows operating in a harsh weather conditions and unstable electrical installations.


LigoWave OS

LigoWave OS contains all of the essential features for establishing fast, strong, and reliable PTMP networks. The LigoWave OS includes IPv6 Bridge & Router Support, SSDP & Bonjour Device Discovery Options, Flexible Traffic Shaping, DHCP Option 82, and more. The user interface is built on HTML5 with responsive design.
ipoll2

iPoll 3: Enhanced Performance Protocol

LigoWave’s iPoll™ PTMP (Point-to-Multi-Point) proprietary protocol is an innovative solution, eliminating transmission congestion and close-cluster interference created in wireless PTMP installations.

Learn more

WNMS

WNMS is a FREE enterprise grade Wireless Network Management System.  A single software solution simplifies a large number of management and monitoring tasks for the network administrator.

Learn more

LinkCalc

LigoWave‘s link calculator is a link planning tool available online at
http://www.ligowave.com/linkcalc


Learn more
