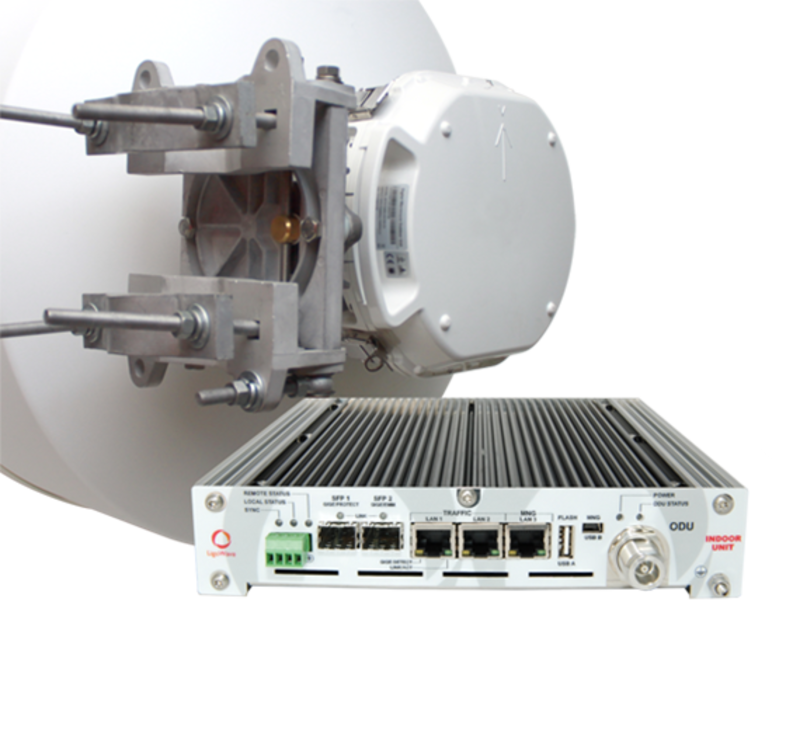

LigoPTP 620HP
Highlights:
Wide frequency range support from 6 to 38 GHz
Flexible channel sizes: from 7 to 56 MHz (ETSI), from 10 to 60 MHz (ANSI)
Double capacity mode 2+0
Protection modes: 1+1 Hot Standby, 1+1 Space diversity, 1+1 Frequency diversity
Up to 730 Mbps real data throughput (365 Mbps full duplex) in 1+0 configuration
Up to 1460 Mbps real data throughput (730 Mbps full duplex) in 2+0 configuration
Low latency, less than 0.5 msec
Up to 23 - 30 dBm transmit power (frequency dependent)
Hitless auto-rate support (ACM)
Automatic transmit power control
Up to 32 E1/T1 lines support with external LigoMUX 16 multiplexer
