The DLB 5-23ac Dish is an extension of the time-tested LigoDLB product line of wireless data transfer devices, empowering users to deliver superb connectivity over 5GHz frequencies. The LigoDLB Dish 5-23ac incorporates a 23dBi dish antenna, which provides high-gain reception and precise directional focus, enhancing signal strength and quality. This device is ideal for remote locations, ensuring reliable, long-range communication with minimal interference.

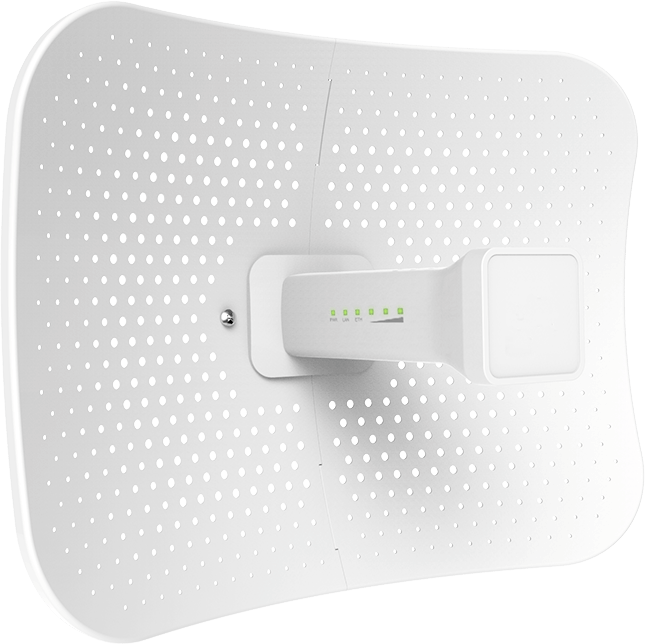

LigoDLB Dish 5-23ac
5GHz Outdoor Wireless Device With Integrated 23dBi Dish Antenna
Equipped with a 775MHz Atheros radio, and 128MB RAM/16MB Flash Memory, the DLB Dish 5-23ac brings efficiency to the next level.
The state-of-the-art RF design with an 23dBi dual-polarized dish antenna delivers great output power, improves range, and enables high-capacity transmission over 256-QAM.
+500Mbps of real throughput—the result of a powerful hardware platform with an 802.11ac technology-based radio and the LigoWave iPoll 3 Proprietary Protocol.
LigoWave DLB Dish 5-23ac is Designed For
Internet Access
Video Surveillance
Rural Connectivity
Infinity Controller
The Infinity Controller is a wireless network management platform available for the NFT series, LigoDLB series, LigoVision and LigoPTMP series (monitoring only). The controller allows users to install, manage, and expand NFT Wi-Fi networks and DLB networks using automated device onboarding, predefined network scenarios, and other features. The Infinity Controller for the DLB and PTP series allows users to simplify the way they build, expand, and maintain their wireless networks.
LigoWave OS
The intuitive OS provides a setup wizard and a iPoll3 proprietary protocol, making link setup easy and straight forward. It includes the essentials such as the Spectrum Analyzer and the Site Survey tools.
Setup Wizard
Guides the installer through the important steps of the setup process.
The Link Calculator
Enables the installer to measure network throughput and link quality without additional equipment.
iPoll 3
iPoll 3 proprietary protocol allows eliminate transmission congestion and close cluster interference created in PTMP wireless installations.
Small Packaging
Small packaging reduces transportation and storage costs, enhancing cost-efficiency.
Integrated Surge Protection
16kV ESD protection allows operation under harsh weather conditions and unstable electrical installations.
Ingress Protection
IP66 offers complete protection against dust ingress and strong water jets from any direction, ensuring durability and reliability in harsh environments.
LigoDLB Dish 5-23ac Quick Setup

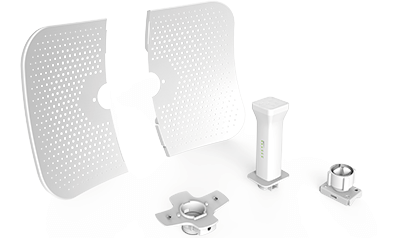

Unboxed
Pre-Assembled
Completed
Specification
500+ Mbps real capacity
High power (26dBm) radio
Proprietary protocol (iPoll)
Zero loss design
Integrated ESD surge protection
23dBi dual polarized dish antenna
PTMP Mode: ~13km
PTP mode: ~20km
Interfaces:
1x 10/100/1000 Base-T Ethernet (24VDC Passive PoE)
