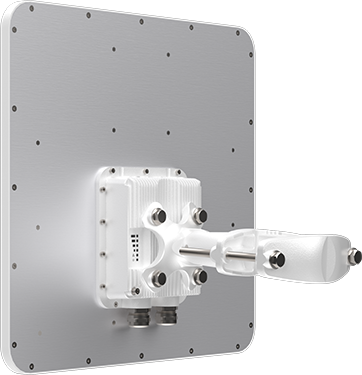

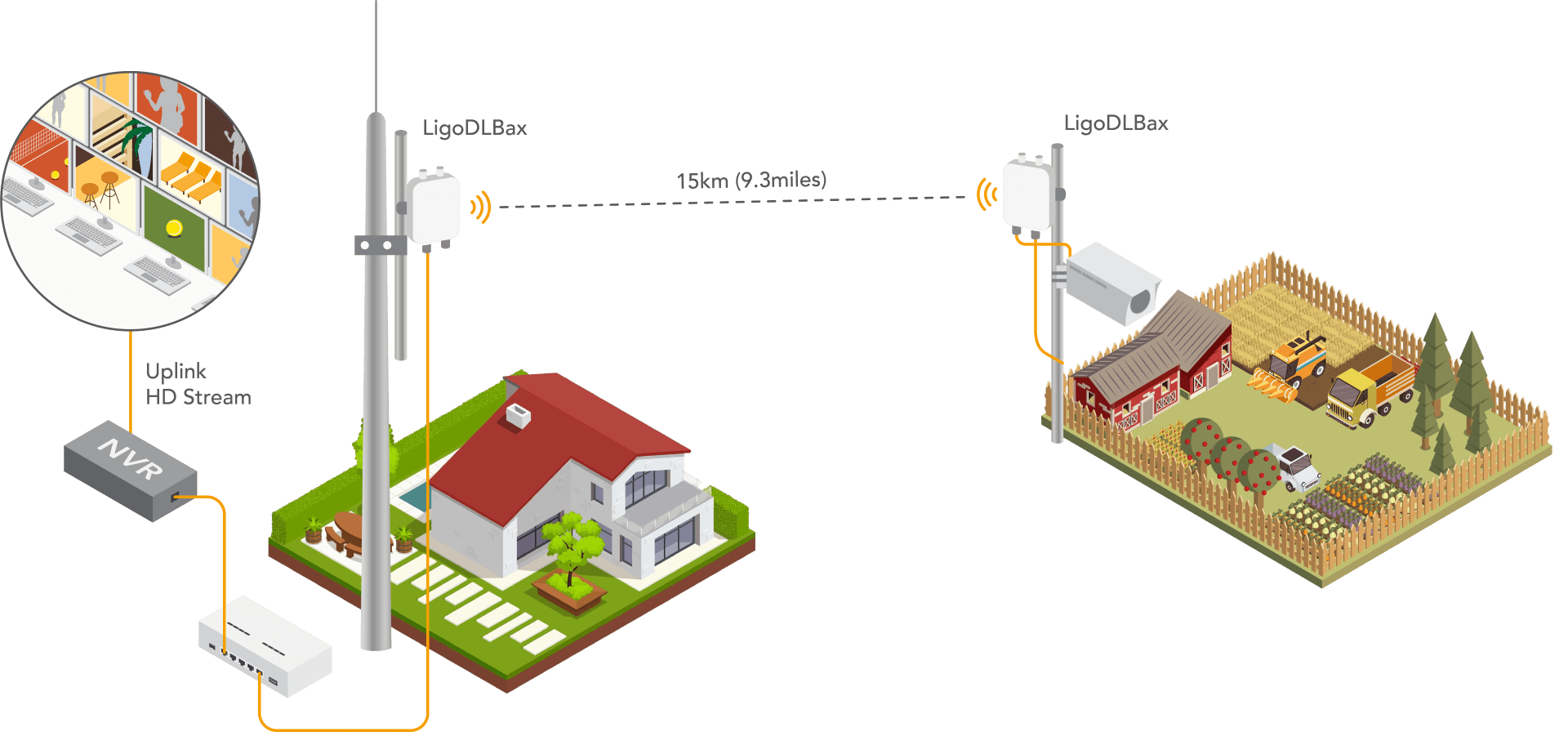

The DLB 5-23ax, a high-performance addition to the LigoDLB series, uses 802.11ax wireless technology to deliver up to 1500 Mbps over the 5GHz unlicensed band. Ideal for point-to-point and point-to-multipoint scenarios, it ensures robust connectivity for demanding applications. Equipped with an integrated 23 dBi antenna, it offers enhanced range and performance. Its durable metal casing provides extra protection, while a second Ethernet port with software-enabled PoE powers external devices like 802.3af PoE CCTV cameras or other LigoWave gear, offering flexible integration.
The metal casing reduces interference and noise when multiple devices are mounted on the same pole. Its IP67-rated housing also acts as a heatsink, improving RF performance by dissipating heat.
Complying with IEC 61000-4-5, it offers 6kV line-to-ground and 2kV line-to-line protection for reliable performance in harsh weather and unstable electrical conditions.
Designed for tough weather, it features an IP67-rated anticorrosive metal casing for long-lasting durability, making it a reliable choice for projects requiring standardized IP-rated equipment.
Transmit power up to 24 dBm.

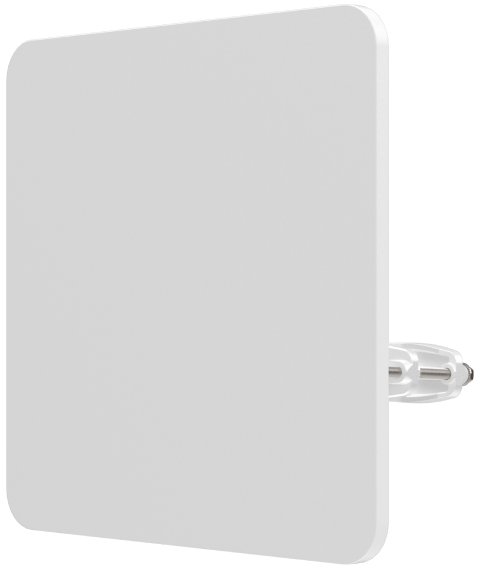

Integrated 23 dBi antenna.
One PoE IN, One PoE OUT.
-40°C (-40°F) to +65°C (+149°F)
Compatible with various LgoWave devices.

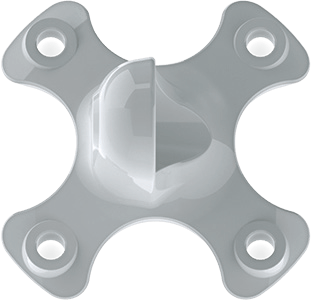

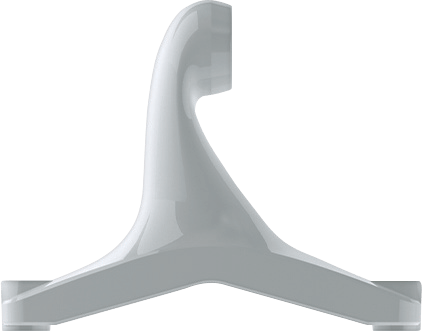

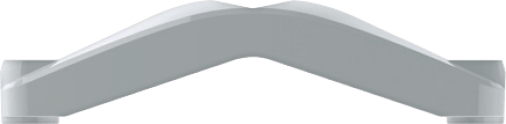

Rotate it in every direction you want.
The device has a built-in 2.4GHz radio for remote access, allowing configuration from up to 20 meters away or from challenging locations like a telecommunications tower or a 10-story building, using a smartphone or tablet. This enhances convenience and safety while reducing operational costs by minimizing the need for on-site visits, saving on labor and maintenance expenses.

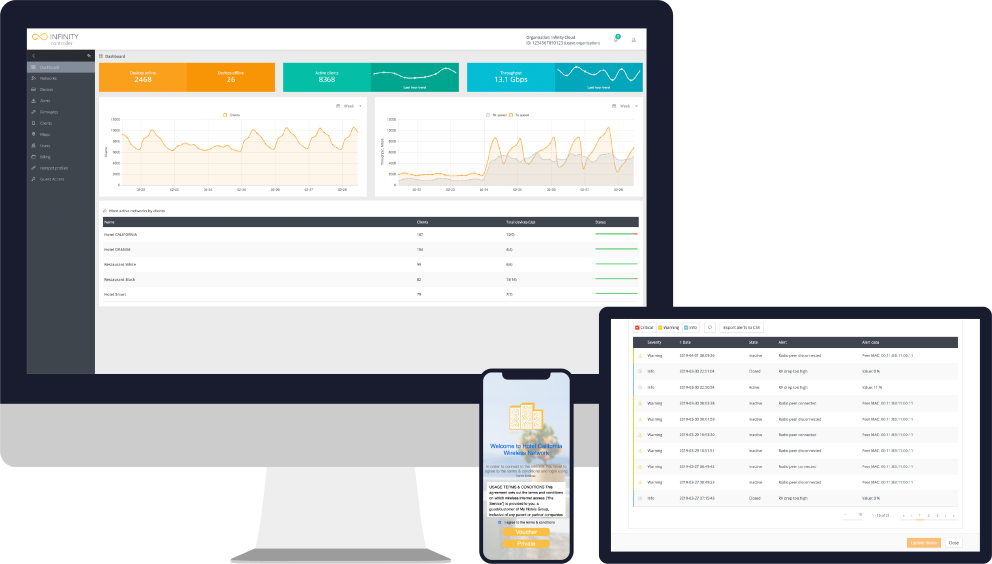

The Infinity Controller is a wireless network management platform available for the NFT series, LigoDLB series, LigoDLBax series, LigoVision series and LigoPTMP series. It enables users to install, manage, and expand NFT Wi-Fi and DLB networks with automated device onboarding, predefined network scenarios, and other features. For the DLB, DLBax, and PTP series, the Infinity Controller simplifies the deployment, expansion, and maintenance of wireless networks.
up to 1500+ Mbps capacity
High power (24 dBm) radio
Zero loss design
Integrated surge protection
Integrated 23dBi antenna
Interfaces:
First: 100/1000/2500 Base-T with PoE IN (RJ45)
Second: 10/100/1000 Base-T with PoE OUT (RJ45)
Power Supply:

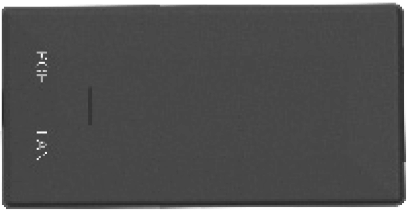

802.3at or -48 -56VDC passive PoE (AC to 48 VDC PoE Adapter Included)
Power Source:
~100-240 VAC
Max Power Consumption:
Up to 15W / 30W (with PoE output)
2nd Ethernet Port Power Supply:
802.3af/passive 48VDC, up to 13W
